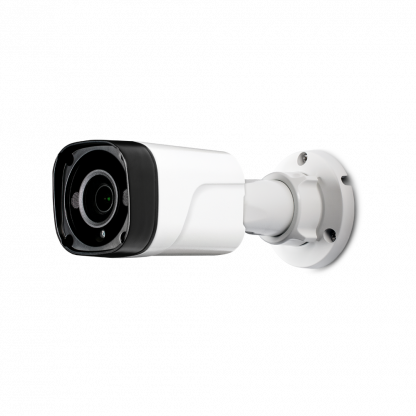

Camera Specifications
Camera Type
Outdoor IR Bullet
Image Sensor
1/2.8″ SONY Starvis 2.13 Megapixel CMOS Sensor
Minimum Illumination
0.001 Lux
Power Requirement
DC12V
Product Dimensions
6.87” x 2.83” x 2.83”
175.5mm x 72mm x 72mm
What's Included
4 Phillips Screws
4 Drywall Anchors
DC12V Pigtail/Barrel Plug Adapter
Video Output
1 x EX-SDI 2.0 / HD-SDI (BNC)
1 x Analog (BNC)
Lens
2.8~8mm (ƒ1.4) Autofocus True D/N
IR LEDs
4 High Intensity IR LEDs
Power Consumption
550mA ±10% max. (IR LEDs On & Zoom/Focus)
Product Weight
0.85 lbs (0.385 kgs)
Resolution
1080p @ 30fps / 720p @ 30fps
Field of View
114.2° ~ 54.7° (Horizontal)
Weather Rating
IP68
Operating Temperature
-20° to 122° F (-28° to 50° C)
Materials
Aluminum Housing & Bracket/Mounting Plate
DVR Specifications
(CE-EX8)
Video Input
8 Channels (BNC)
Backup
Local: USB Flash Drive (Up to 32GB)
Remote: AVMS Remote Software (Windows PC)
Recording Mode
Time / Motion / Event
Video Output (Main)
1 HDMI Output
1 VGA Output
1 Composite RCA Output
Connections
USB – 2 Ports (1 Front, 1 Rear)
Ethernet – 1 RJ45 (100-1000 Mbps)
PTZ – 1 RS485 (+/-)
Operating System
Embedded Linux
Password Protection
2 Admin / 6 Users (DVR and Remote View)
Product Weight
2.6 lbs / 1.17 kg (No HDD)
Operating Temperature
32° to 104° F (0° to 40° C)
Video Input Type
EX-SDI 2.0, EX-SDI, or HD-SDI BNC
Recording Frame Rate
240 FPS Global (30 FPS per channel)
Video Codec
H.264
Video Output (Spot)
Main RCA can be configured as a Spot Output (Analog)
Playback Speed
x1, x2, x4, x8, x16
Network Bandwidth
8 Mbps – 50 Kbps, SMS 1 Mbps minimum
Remote Viewing
Windows PC: AVMS Software (Included)
Mobile: CEC Connect App (iOS & Android)
Web Browser: Internet Explorer
Power Requirement
DC12V (Includes Power Supply)
What's Included
AVMS Remote Software Disc
DC12V Power Supply
Mouse
IR Remote
HDD Size
1TB
Recording Resolution
Auto Detected by each channel (1080p, 720p)
Audio Codec
ADPCM
Audio In/Out
8 RCA Inputs / 1 RCA Output
Search Modes
Quick, Calendar, Event, Overlapped List, Museum, Go to First / Last
PTZ Support
Multiple Protocols Supported (including Clinton, Pelco, Panasonic, Kalatel, etc.)
Product Dimensions
10.25″ (W) x 9.375″ (D) x 1.75″ (H)
260mm (W) x 238mm (D) x 44mm (H)
Power Consumption
11.4 Watts (.95 Amp)
Power Supply Specifications
Input Voltage
100~240VAC
Product Dimensions
1.57″ (W) x 2.56″ (H) x 7.55″ (D)
40mm (W) x 65mm (H) x 192mm (H)
What's Included
AC110V Power Cable
Output Voltage
DC12V (Adjustable, 10.4~14.5V ± 5%) / 5 Amps Total
Product Weight
0.5 lbs (0.22 kg)
Number of Outputs
4 (+ / -) Screw Terminals
Certifications
UL Listed, FCC, CE
Warranty & Support
Warranty
3 Year Warranty w/1st Year Advance Replacement
Learn More
Technical Support
Free Lifetime Technical Support via Phone (1-800-549-6393)
