ptz10xHD
ptz10xHD_gangboxPTZ10xHD_ceiling10x_fall

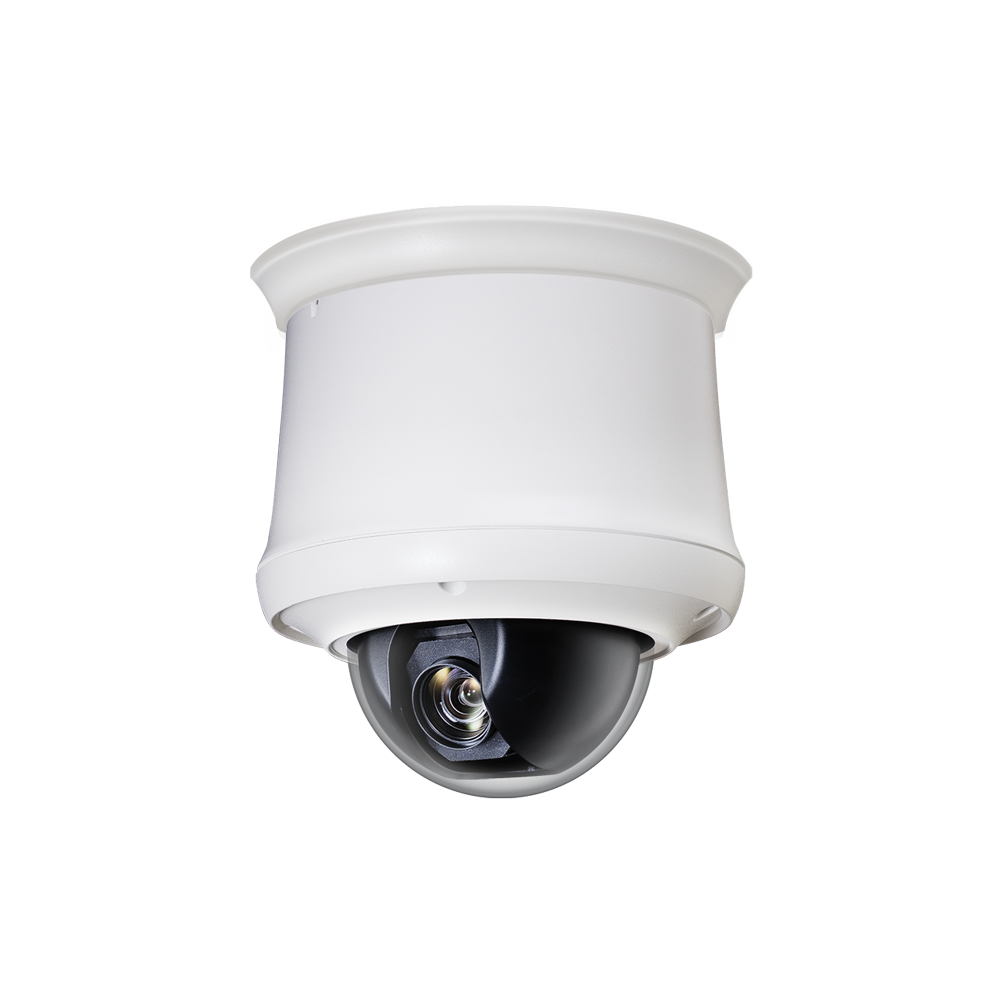

CE-PTZ10XHD

HD-SDI TDN Indoor/Outdoor 10x PTZ

Indoor or Outdoor? Wall or Ceiling mount? With the CE-PTZ10XHD, you don’t have to choose; it does it all! The CE-PTZ10XHD features Full HD 1080p resolution via HD-SDI output, a 5.1~51mm (ƒ1.6~ƒ1.8) 10x zoom lens, a temperature-controlled enclosure, and includes both wall and ceiling mount brackets.

  • 1/3″ PANASONIC 2 Megapixel CMOS Sensor
  • 1080p at 60 or 30 FPS; 720p at 60 FPS
  • HD Over Coax (1080p HD-SDI) or Analog (700 TVL)
  • 5.1~51mm (ƒ1.6~ƒ1.8) True D/N Lens
  • 10x Optical Zoom and 32x Digital Zoom
  • Temperature Controlled by Heater and Fan
  • 255 Presets, 8 Tours, 8 Scans, 4 Patterns, 16 Areas, and 2 Alarms
  • 360° Horizontal (Pan) and 0° to 90° Vertical (Tilt)
  • IP67 Weather-rated Aluminum Housing
  • Safety Cable prevents the PTZ from falling during Installation and Maintenance
  • Includes Wall Bracket and Double Gang Box Adapter
  • Includes Ceiling-Mountable Bracket
  • RS-485 or RS-422 Communication
  • 2 Alarm Inputs / 2 Alarm Outputs
  • DC12V/AC24V (Power Supply Sold Separately)
  • Supports Multiple Protocols

Only authorized dealers can see pricing. Fill out our Dealer Application for access!
