CC119

CE-CC119

S7 TDN Box Camera

For the ultimate in versatility, choose a Box camera. Box cameras allow the installer to choose the perfect lens and mounting bracket for the application.

1/3″ SONY Exmor 1.3 Megapixel CMOS Sensor
1000 TVL Resolution
Back-Focus Lens Adjustment
True Day / Night
S7 Digital Signal Processor
OSD Menu Control via Built-in Joystick or CE-REMOTE
DC12V/AC24V
Lens Sold Separately

DIN JACK

Make adjustments to the camera OSD menu easier by plugging in a CE-REMOTE to the DIN Jack.

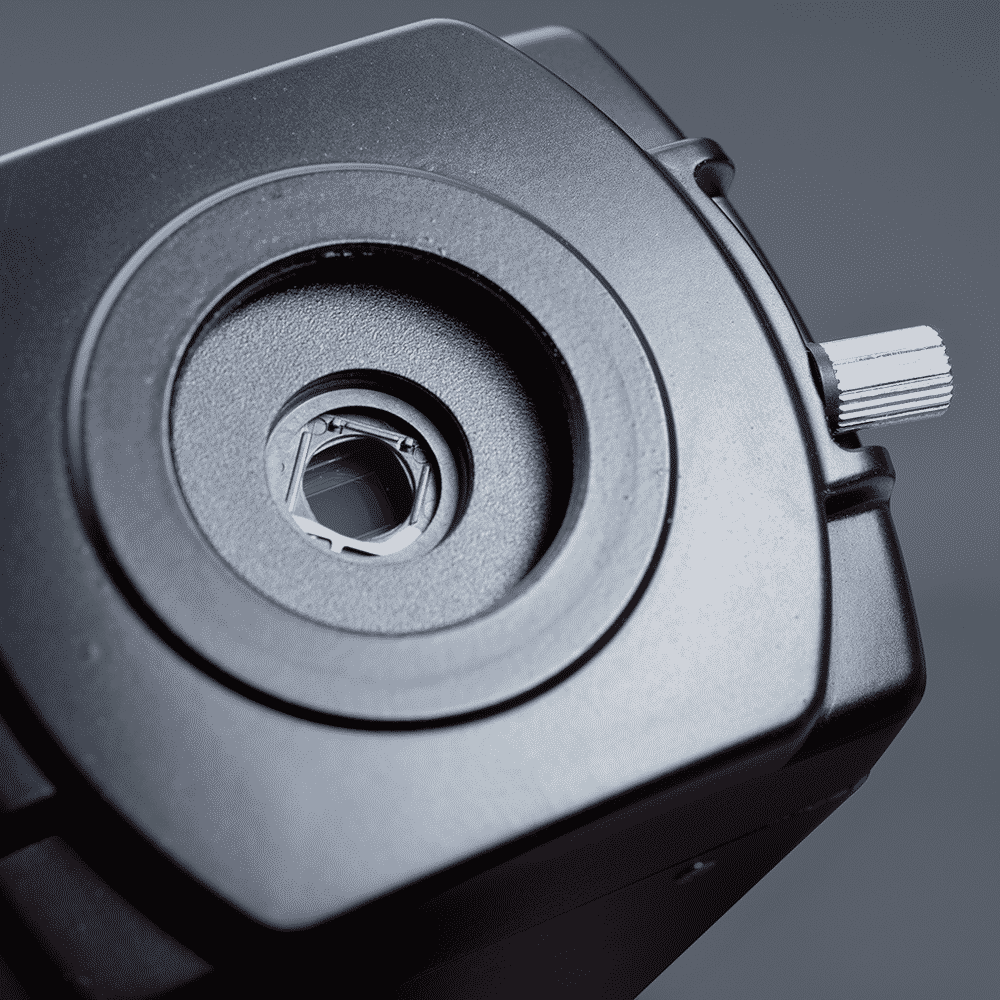

BACK-FOCUS ADJUSTMENT

Use the back-focus adjustment to fine tune the focus of the camera lens.

Camera

Image Sensor

1/3″ SONY Exmor 1.3 Megapixel CMOS Sensor

Scanning System

Progressive

Shutter Speed

1/60 – 1/60,000 sec.

Resolution

1000 TVL

S/N Ratio

52dB

Effective Pixels

1305 (H) x 1049 (V)

Minimum Illumination

0.00001 Lux (Sens-Up x64)

Lens

Mount Type

CS Mount or C Mount (includes adapter)

True Day / Night

Yes

DSP

DSP Version

S7

Menu Control

Joystick

Built-in

DIN Port

For use with optional CE-REMOTE

Connections

Composite Video Output

1 BNC Output

Remote Control Input

1 DIN Input

Power Requirements

Type

DC12V and AC24V

Power Consumption

DC12V: 3.6 Watts (0.3 Amp)

AC24V: 2.4 Watts (0.1 Amp)

Physical

Product Dimensions

2.71″ (W) x 2.16″ (H) x 4.33″ (D)

69mm (W) x 55mm (H) x 110mm (D)

Product Weight

0.75 lb (340.19 g)

Materials

Housing

Aluminum

Environmental

Operating Temperature

14° to 122° F (-10° to 50° C)

Operating Humidity

0% to 90% Non-condensing

Standards

FCC

Part 15B, Class A

RoHS

Compliant

What’s Included

4 Pin Auto Iris Lens Adapter

C Mount Lens Adapter

Warranty & Support

Warranty

3 Year Warranty w/1st Year Advance Replacement
